Differential Pressure Manifolds

Used together with a DP transmitter, The manifold comes with either a 3 valve manifold or a 5 valve manifold. The valve is used isolate the DP transmitter from the process for maintenance and calibration.

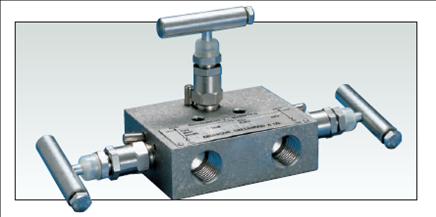

The M1 is a three-valve manifold designed to mount to the signal lines and instrument when the instrument has connections different than 21⁄8-inches [54 mm] between signal taps such as recording orifice meters, small differential pressure indicators and some differential pressure switches

More details

The MM1 is a miniature three-valve manifold for applications requiring remote mounting from the instrument. Made in CS, 316 SS, or brass, the MM1 features O-ring or packed bonnets with soft or metal seats.

More details

Designed for remote mounting an instrument via threaded process and instrument connections, the A22N has two block valves, an equalizer valve and two instrument side vent/calibrate valves.

More details

The M3A Equalizer Manifold is designed for use with differential pressure transmitters where low-cost direct coupling is desired and piping specifications require individual block valves.

More details

Our M4 Manifold is a three-valve unit designed for mounting on differential pressure transmitters having 21/8-inch [54 mm] center-to-center connections. For direct or remote mounting, the M4A permits the transmitter’s futbol flanges to connect the process signal lines to the manifold directly, with either 1/2-inch pipe or tubing connections.

More details

Our M45A manifold is a three-valve unit with 3/8-inch [9.5 mm] orifice block valves designed for mounting on differential pressure transmitters having 21/8-inch [54 mm] center-to-center connections.

More details

The AX3 is a three-valve manifold designed for direct mounting to standard differential pressure transmitters. Lightweight and compact, the manifolds enable instrument operation, isolation and zeroing in a single unit.

More details

The M20 Manifold is a rotary-positioned differential pressure transmitter manifold. It uses a dual-rotary element with passages cut to perform the functions of a doubleblock- bleed manifold, with single handle actuation.

More details

The M24 is a five-valve manifold designed for direct mounting to differential pressure transmitters. Lightweight and with compact dimensions, M24 manifolds enable instrument operation, isolation, zeroing and venting in a single unit.

More details

The A26 is a five-valve manifold designed for mounting to differential pressure transmitters. Lightweight and with compact dimensions, A26 manifolds enable instrument operation, isolation, zeroing and venting in a single unit.

More details

The MDP is a five valve manifold designed for direct mounting to differential pressure transmitters. Lightweight and with compact dimensions, MDP manifolds enable instrument operation, isolation, zeroing and venting in a single unit.

More details

The DPM is a five-valve manifold designed for remote mounting to differential pressure transmitters. Lightweight and with compact dimensions, DPM manifolds enable instrument operation, isolation, zeroing and venting in a single unit.

More details

The MM5 is a five-valve miniature manifold designed for instrument installations where space is restricted. Lightweight and with compact dimensions, MM5 manifolds are designed for flow metering and differential pressure transmitters to enable instrument operation, isolation, zeroing and venting in a single unit.

More details
