F - Series Multi-Purpose Indicators

F - Series Multi-Purpose Indicators

Fluidwell provides a broad array of solutions, ranging from simple multi-purpose indicators to sophisticated multi-purpose monitors. The F-Series Multi-Purpose Indicators displays the actual process value, range and loop current. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu.

The F-Series is robust explosion-proof multi-purpose indicators designed for hazardous areas appear to offer a compelling combination of easy operation and extreme durability, making them well-suited for the toughest conditions. This emphasis on usability and resilience could provide significant benefits in hazardous environments, ensuring reliable performance when it's needed most

F090 SA / IS - Multi-Purpose Indicator input loop powered with very large digits

F490 SA / IS - Loop Powered, Multi-Purpose Indicator for universal applications

F093 SA / IS - Tachometer Monitor displays engine speed and running hours with alarm output

F190 SA / IS - Multi-Purpose Monitor with alarm outputs and configurable hysteresis

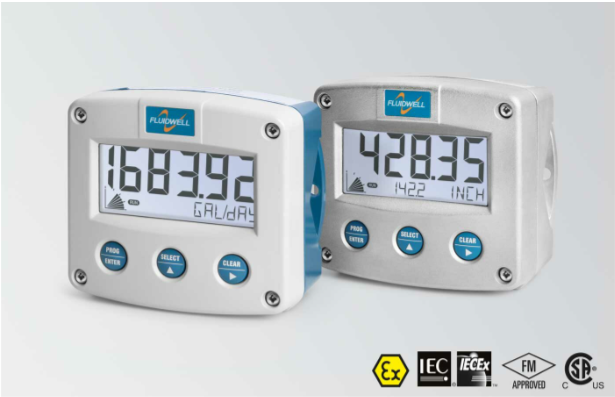

F090 SA / IS - Multi-Purpose Indicator input loop powered with very large digits

F090 is a Safe area / Intrinsically safe - Multi-Purpose Indicator input loop powered with very large digits. The F090-A-PL is an economical loop powered general / multi-purpose indicator with large 26mm (1”) high digits. The measuring unit to be displayed is simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user-friendly solution!

The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers.

It accepts 4 - 20mA input signals from a wide range of process instruments,, including flow (linear or square root), level, pressure and temperature transmitters. All these process parameters can be displayed in their own engineering units.

DATA SHEET - F090

F-SERIES LEAFLET

F0-SERIES DECLARATION OF CONFORMITY

ATEX CERTIFICATE

IECEx CERTIFICATE

CSA C-US CERTIFICATE

FM CERTIFICATE

CONTROL DRAWING F0-SERIES

ANNEX 1 TO NL/KEM/ExTR08.0006/02

B - N SERIES ACCESSORIES AND SPARE PARTS

Features

Displays the actual value, measuring unit and loop current.
Very large 26mm (1") high digits.
Selectable on-screen engineering units: %, PPM, meter, m, cm, mm, ft, sqft, ML, L, NL, M³, nM³, GAL, USGAL, IGAL, bbl, CUFT, mg, g, kg, ton, lb, psi, psig, mbar, bar, barg, °C, °F, K, P, RPM, K, KPA or no unit (others on request).
Selectable on-screen time units for flow rate:
/sec, /min, /hour, /day or no unit.
Number of digits for actual value: 5½.
Piegraph indication: ten segments.
LED backlight with adjustable intensity.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Application

Applications where a local general / multi-purpose display is required without monitoring function, linearization or signal re-transmitting.
The F090 takes operating energy from an input current (2-wire 4 - 20mA) and reduces installation cost.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Benefits

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

More details

F490 SA / IS - Loop Powered, Multi-Purpose Indicator for universal applications

F490 Safe area / Intrinsically safe - Loop Powered, Multi-Purpose Indicator for universal applications. The F490 is a versatile, loop powered Multi-Purpose Indicator to display the actual process value, range and loop current. Besides the focus on level, temperature and pressure applications, the F490 can also work with other measuring units, like %, mA, RPM and more. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. The configuration of Span, offset and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Therefore, the F490 is a versatile indicator that suits many applications. Various options are available, including Intrinsic Safety for hazardous area applications.

The input circuit is separated from the backlight circuit. The F490 accepts 4 - 20mA input signals from a wide range of process instruments, including flow (linear or square root), level, pressure and temperature transmitters. All these process parameters can be displayed in their own engineering units.

DATA SHEET - F0490

F-SERIES LEAFLET

F400-SERIES DECLARATION OF CONFORMITY

ATEX CERTIFICATE

IECEx CERTIFICATE

CSA C-US CERTIFICATE

B - N SERIES ACCESSORIES AND SPARE PARTS

Features

Universal loop powered indicator.
Input signal: 4 - 20mA with ultra low voltage drop < 1V DC, allowing easy installation in almost any 2-wire, 4–20mA loop.
Displays the actual value, measuring unit and loop current.
Very large 26mm (1") high digits.
Selectable on-screen engineering units: L - NL - mL - M³- AM³ - NM³ - mg - g - Kg - TON- OZ- GAL - USGAL - IGAL - lb - bbL- cf - CUFt - scf - p - rev - °C - °F - K - % - M - mm - CM - mtr - inch - Ft - SQFt – Yd - PSI - psig - mbar - MbARG - bar - barg – bara – PA - PAG - KPA – KPAG - MPA - INHG – mmHg - mmH2O - MH2O – INH2O- Ph – mV – mA - A - uS – PPM – RPM or no unit.
Selectable on-screen time units for flow rate:
/SEC – /S – /MIN – /M – /HR – /H – /DAY – /D or no unit.
Number of digits for actual value: 5½.
Piegraph indication: ten segments.
LED backlight with separated circuit from the input circuit.
Intrinsically safe according ATEX, IECEx and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -30°C to +70°C (-22°F to +158°F).
Various accessories are available for this product.

Application

Applications where a local, loop powered, general / multi-purpose display is required without monitoring function, linearization or signal re-transmitting.
The F490 takes operating energy from an input current (2-wire 4 - 20mA) and has a separated backlight circuit.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -30°C to +70°C (-22°F to +158°F).

Benefits

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

More details

F093 SA / IS - Tachometer Monitor displays engine speed and running hours with alarm output

F093 is a Safe area / Intrinsically safe - Tachometer Monitor that displays engine speed and running hours with alarm output. The F093 is a local indicator to monitor the tachometer engine speed with running hours simultaneously. The running hours can be reset to zero by pressing the CLEAR button twice. The eleven digit accumulated running hours however can not be reset to zero.

DATA SHEET - F093

F-SERIES LEAFLET

F0-SERIES DECLARATION OF CONFORMITY

ATEX CERTIFICATE

IECEx CERTIFICATE

CSA C-US CERTIFICATE

FM CERTIFICATE

CONTROL DRAWING F0-SERIES

ANNEX 1 TO NL/KEM/ExTR08.0006/02

DATASHEET EX d ENCLOSURE (OPTION XF)

B - N SERIES ACCESSORIES AND SPARE PARTS

Features

Displays engine speed and running hours simultaneously and additional accumulated running hours, alarm values and alarm messages.
On-screen engineering units: HOURS and RPM.
Displays clear alarm messages.
Red flashing LED backlight in case of an alarm; intensity adjustable.
Large 17mm (0.67") digits for engine speed or running hours.
Various alarm values can be entered: low / high engine speed alarm and total running hours alarm.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Application

Tachometer applications where monitoring of the engine speed and running hours is important and both need to be displayed and registered.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Benefits

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

More details

F190 SA / IS - Multi-Purpose Monitor with alarm outputs and configurable hysteresis

F190 is a Safe area / Intrinsically safe - Multi-Purpose Monitor with alarm outputs and configurable hysteresis. The F190 is a versatile general / multi-purpose indicator with continuous monitoring feature. Beside the focus on level, temperature and pressure applications, it also contains a range of other measuring units and even the possibility to create a custom unit with max. 8 characters.

It has two low level and two high alarm values with 4 configurable hysteresis modes. If desired, an ignore function can be set up to allow for an incorrect measurement for a certain period of time.

DATA SHEET - F190

F - SERIES LEAFLET

F1 SERIES DECLARATION OF CONFORMITY

ATEX CERTIFICATE

IECEX CERTIFICATE

CENELEC CERTIFICATE (2002)

ANNEX 1 TO NL/DEK/EXTR11.0033/01

F1 SERIES CERTIFICATE BINDER

CCOE CERTIFICATE (INDIA)

FLUIDWELL MODBUS COMMUNICATION GUIDE

F1-SERIES MODBUS TROUBLESHOOTING GUIDE

DATASHEET EX d ENCLOSURE (OPTION XF)

B - N SERIES ACCESSORIES AND SPARE PARTS

Features

Displays actual value, % and measuring unit.
4 alarm values can be entered: low-low, low, high and high-high alarm.
4 configurable hysteresis modes for alarm set- & resetpoints.
Various alarm messages can be set to each alarm value.
Large 17mm (0.67") digits.
Wide range of engineering units for e.g. level, temperature and pressure and other applications
Create a custom measuring unit with max. 8 characters.
Full Modbus communication RS232/485/TTL.
Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
Sensor supply 3 / 8.2 / 12 / 24V DC.
Red flashing LED backlight in case of alarm.
Intrinsically safe according ATEX and IECEx.
GRP, Aluminum or high grade stainless steel enclosure.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Application

For monitoring a wide range of process paramaters like flow (linear or square root), level, pressure and temperature measurements, even with signal re-transmission or serial communication available.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Benefits

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

More details
