Process Monitor / Data Acquisition / Smart Services

Process Monitor / Data Acquisition / Smart Services

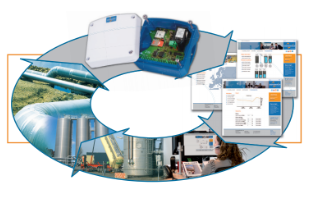

Process Monitor offers logistic supply chain optimization for various raw bulk materials stored in tanks and silos. They provide web-based remote monitoring solutions for the process industry, including remote tank and silo monitoring, remote inventory management, etc

Process Monitor solutions connect to various industrial sensors and instruments, gathering readings and alarms in a centralized manner on an easy-to-use Cloud-based sensor platform. The system can be powered by solar panels, internal batteries, or a power supply.

TDR 100 - CONTINUOUS GUIDED LEVEL RADAR WITH POINT LEVEL DETECTION

M853 - Data Acquisition & Communication Module ith 4 analog, 3 digital inputs, data logging

SMART SERVICES (IoT)

TDR 100 - CONTINUOUS GUIDED LEVEL RADAR WITH POINT LEVEL DETECTION

The Guidense TDR100 is a guided wave radar (GWR) for continuous level measurement and point level detection in liquids and solids, with active analog and digital control output. Mechanical installation has almost no restrictions and can be done easily. Due to its relatively small G3/4" process connection thread, the Guidense can be mounted at nearly any existing tank nozzle. Configuration of the TDR100 isn't any harder. Easy configuration can be done by your own crew instead of expensive service engineers.

The Guidense TDR100 uses Time Domain Reflectometry technology: low-energy, high-frequency electromagnetic impulses, generated by the sensors circuitry, are propagated along the probe which is immerged in the liquid or solid to be measured. When these impulses hit the surface of the media, part of the impulse energy is reflected back up the probe which then calculates the level from the time difference between the impulses sent and the impulses reflected.

DATASHEET - TDR100

GUIDENSE DECLARATION OF CONFORMITY

Features

3 Probe types: single rod probe, wire rope probe and a coaxial probe.
Measuring range: 100 to 20.000mm.
Fastest reaction time with 0,5 sec in the market for smallest vessels / tanks.
No influences caused by tank / vessel internals.
Power requirements: 12 to 30VDC.
Accuracy of +/-3mm or 0.03% of measured distance.
Resistant to harsh environments with IP68/NEMA6P enclosure.
Smallest inactive areas in the market.
Fully compatible with the popular Fluidwell F-Series and D-Series level indicators and monitors.
Complete galvanic insulation of device electronics from its inputs/outputs and the tank potential.

Application

Suitable in almost every liquid and solids - independent of changing process conditions, such as density, conductivity, temperature, pressure, vapor and turbulence.
All types of process and storage tank applications and has an exceptional performance in media with low dielectric constant (i.e. low reflectivity) such as oils and hydrocarbons.
The Guidense TDR100 has almost no installation restrictions - it can be mounted in small tanks, tall and narrow nozzles and it measures precisely even with difficult tank geometries or close to interfering structures.

Benefits

User-friendly installation and configuration by your own technicians, saving cost on service engineers.
Best price-performance ratio in the market.
Highly robust measurement, innovative signal analysis and disturbance signal suppression.
Reliable measurements even in changing process conditions.
Accurate continuous level measurement and reliable point level detection in one device.

More details

M853 - Data Acquisition & Communication Module ith 4 analog, 3 digital inputs, data logging

M853 is an ultra-low power “all-in-one” Data Acquisition & Communication Module including datalogging, designed for a wide-range industrial applications. The M853 can be fully configured according to your process requirements. No additional signal converters / amplifiers, encapsulating cabinet or other electrical installation material necessary. Shortly: As long as your sensor, instrument, (field)device or other equipment has an analog output, you can take advantage of ProcessMonitor.

The M853 is in full compliance with the ProcessMonitor Webportal or ProcessView stand-alone software package for visualization, data history, trend graphics and/or extensive alarming.

DATASHEET - M853

SUCCESS STORY : REMOTE TANK MONITORING

Features

2G, 3G or 4G modem communication.
8 - 30V DC power supply, battery or solar powered.
Energy management sensor onboard, accurately calculates the remaining battery lifetime.
Integrated antenna; no “eye-catchers” to prevent vandalism or abuse.
Wide operating temperature range -30°C to +75°C.
Flexible mounting possibilities (wall/panel/pipe).
Data logging by 4GB micro-SD card, for over 20 milion data entries with date and time stamp.

Application

Specially designed for industrial applications using (field) devices and instrumentation to measure level, flow, weight/mass, pressure, temperature, dissolved oxygen, pH, conductivity, vibration, energy/fuel consumption etc.
Extremely suitable for replenishment purposes or logistic and Supply Chain (SCM) optimization for raw bulk materials including: Remote Silo/Tank Monitoring, Remote Inventory Management, Customer and Vendor Managed Inventory (VMI).

Benefits

Entirely autonomous monitoring and datalogging solution independent from local infrastructure suitable for off-grid or hard to reach locations using 2G (GPRS), 3G (UMTS) or 4G communications with DC power, battery or solar panel power options.
Easy and time saving configuration through local USB 2.0 port and bright and clear terminal interface (no code input!) or remotely, even when the M853 has a public, dynamic IP address.
Flexible freedom in data communication by HTTP, TCP, FTP and/or e-mail. Alerts and alarms by SMS directly from the M853. Extensive alarm capabilties with E-mail and SMS through ProcessMonitor web-portal.
Universal and versatile applicable for different kind of sensors and instruments through 4 analog, 3 digital status-/pulse inputs and optional ASCII, Modbus RTU and SDI-12 ccommunication protocol.
Reduce maintenance costs and service time as even the optional internal battery will last for 3 - 8 years.
Better cause-effect retrieval with increased log interval and alarming when setpoint is triggered.
Resistant to harsh environments, not a DIN-rail mounted module but an “all-on-board” module in a GRP field mount enclosure IP68 (30 min.@2 meters).

More details

SMART SERVICES (IoT)

With Smart Services we go further than just remote monitoring. Apart from the measured value, it is now possible to gain full access to the level sensor device from anyplace, anywhere, anytime for improving and optimizing your complete process.

ProcessMonitors Smart Services is the next level of Smart Level Measurement or (I)IoT (Industrial Internet of Things). With our Cloud-Portal we can visualize, monitor and control any process measurements providing you the data to optimize and improve your process.

DATASHEET - SMART SERVICES

SUCCESS STORY : REMOTE TANK MONITORING

Features

2Full control to easily read, modify, store and analyse all process parameters from anyplace, anywhere, anytime.
Monitor and watch over your process using a secured internet site.
Access from every PC in the world with an internet connection.
Maximum security, availability and reliability as the web server and its applications are guarded 24 hours a day / 7 days a week.
Overview page with recent alarms and events.
Export data in CSV or XML format to integrate into your back office system (i.e. ERP).
Based on (cloud) subscription, so no investment in hardware, software or maintenance.
Subscription including communication costs, so no surprises afterwards.
Alarm acknowledgement on the website, by e-mail or with a return SMS-message.
Multiple Tags, e.g. level, flow temperature, pressure etc., per remote site/location.
Multiple remote sites/locations per user.
User dependent access-rights, e.g. full access or read-only.
Historical overview in trend graphs and table charts.
DEMO: Would you like to see a demonstration: http://portal.processmonitor.com
Use "guest@processmonitor.com" as username with password "demo4cloud".

Application

Bulk storage tanks (solids & liquids) in the food and chemical industry for inventory management.
Any application where you need to monitor your process remotely and receive warning messages when the process becomes critical.

Benefits

GPRS/2G, 3G, 4G or LTE-M data communication by FTP, HTTP, MQTT, TCP and/or E-mail.
Full control through the ProcessMonitor Cloud-Portal.
Process alarms and system alerts by SMS and/or E-mail.
DEMO: Would you like to see a demonstration: http://portal.processmonitor.com
Use "guest@processmonitor.com" as username with password "demo4cloud".

More details
