Process and Temperature Meter

Precision Digital offers a variety of temperature application solutions for temperature transmitter displays and direct temperature inputs from RTD and thermocouples. These meters, displays, and controllers include digital panel meters, explosion-proof displays, and temperature scanning systems. These devices work with thermocouple, RTD, or transmitter analog inputs and include relays and 4-20 mA analog output control and alarm options.

The Sabre series of digital panel meters combines operational simplicity with high-end features to deliver low-cost meters for display only process or temperature applications. Despite being a low-cost meter, the Sabre series is still packed with many features typically found only in more expensive meters, like a NEMA 4X front, universal power supply, front panel programming, input current overload protection, UL Listing and CE marking. The menu structure is easy to navigate because there are only selections for input and scaling options with no other menu choices to add confusion during the setup process.


PD6060 ProVu Dual Analog Input Process Digital Panel Meter

The PD6060 is part of the ProVu series of 1/8 DIN digital panel meters and is designed to accept two inputs, either from process current (4-20 mA) or process voltage (0-5V, 1-5V, etc.) signals. It features a dual-line, 6-digit display, which can be enhanced with optional Sunbright® sunlight-readable LEDs. The meter offers customizable display options, allowing both inputs to be shown simultaneously with tags or to display the results of mathematical operations performed on one or both inputs.

Like all ProVu models, the PD6060 is equipped with UL/C-UL listing, CE marking, a robust NEMA 4X front, and supports both AC and DC power options. It can also include up to four internal relays, a 4-20 mA analog output, and Modbus® serial communications. Additionally, the PD6060 comes with a 24 V DC power supply to support the transmitters and can be programmed using the front panel pushbuttons or the free MeterView® Pro software.




More details

PD7000 ProVu Temperature Digital Panel Meter

The PD7000 is part of the ProVu series of 1/8 DIN digital panel meters, capable of accepting direct temperature inputs from a variety of temperature measurement devices, including thermocouples (types J, K, T, E, R, S, B, N, and C) and RTDs (100 or 1000 Ω platinum, 10 Ω copper, and 120 Ω nickel). It features a dual-line, 6-digit display that can show temperatures in either degrees Fahrenheit or Celsius, with an optional Sunbright® sunlight-readable LED option. The PD7000 includes automatic cold junction compensation for thermocouples and can average readings from up to ten RTD sensors. Like all ProVu meters, it comes with UL / C-UL certification and CE marking, a NEMA 4X front, and supports both AC and DC power options. ProVu meters can also be fitted with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communication. Programming can be done via the front panel buttons or the free MeterView® Pro software.

More details

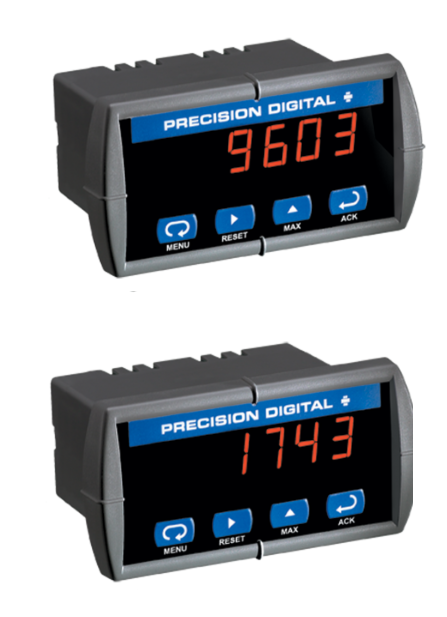

PD603 Sabre P Low-Cost Process Digital Panel Meter

The Sabre P PD603 process meter offers a blend of ease of use and advanced features, making it an ideal low-cost 1/8 DIN digital panel meter for display-only applications. Its straightforward menu structure allows for easy navigation, with options limited to input selection, decimal point placement, and scaling values—eliminating any unnecessary complexity during setup. Even as a budget-friendly option, the PD603 includes several features usually found in higher-end meters, such as a NEMA 4X front, a universal power supply, front panel programming, input current overload protection, UL listing, and CE marking.

More details

PD743 Sabre T Low-Cost Temperature Digital Panel Meter

The Sabre T PD743 temperature meter offers a combination of user-friendly design and advanced features, making it an excellent low-cost digital panel meter for display-only applications. Its menu structure is straightforward, with options limited to input selection and temperature units, ensuring a hassle-free setup process. Even though it is a budget-friendly model, the PD743 is equipped with several features commonly found in higher-priced meters, including a NEMA 4X front, a universal power supply, a display range up to 2300 °F for type K thermocouples, as well as UL listing and CE marking.

More details

PD765 & PD765X2 Trident Process & Temperature Digital Panel Meter

The Trident PD765 digital panel meter is highly versatile, suitable for a wide range of process and temperature applications. Encased in a 1/8 DIN housing with a NEMA 4X front, this meter can be field-programmed to accept various inputs, including process voltage (0-5 V, 1-5 V, etc.), current (4-20 mA), 100 Ohm RTDs, and the four most common thermocouples. The standard display height is 0.56" (14.2 mm), while the Trident X2 features a remarkable 1.2" (30.5 mm) display. Users can adjust the display intensity to accommodate different lighting conditions, including direct sunlight. Programming and setup can be easily done using the four front panel buttons, the free MeterView software, or the copy function. Additional options for the PD765 include two relays, a 4-20 mA output, a 24 V transmitter power supply, and Modbus® serial communication.

More details
