ProVu Flow Rate/Totalizer

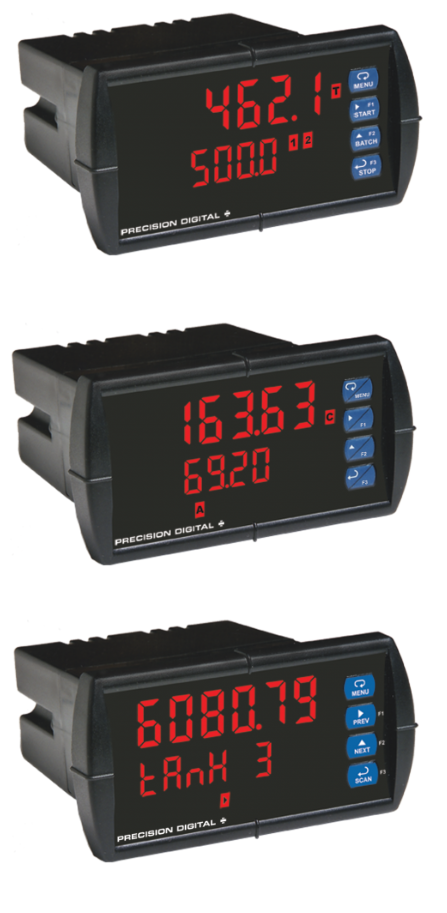

The ProVu series of 1/8 DIN digital panel meters from Precision Digital is their leading product line. This series includes a wide range of analog and pulse inputs, along with Modbus® RTU serial communication. They feature a clear dual-line display, UL/c-UL listing, CE marking, and a robust NEMA 4X front. Additionally, all ProVu models can be equipped with optional SunBright® displays for visibility in direct sunlight. The series supports up to four relays and a 4-20 mA output.

The dual-line display enhances functionality in both programming and operating modes. In programming mode, the second line provides context for the current menu, while in operating mode, it can show a unit tag beneath the process variable. Furthermore, the ProVu’s innovative dual-scaling capability allows the two lines to display different scales for the same input.

Featured Videoenlightened
Provu Series Overview of 1/8 DIN Digital Panel Meters







PD6100 ProVu Strain Gauge, Load Cell & mV Digital Panel Meter

The PD6100 is part of the ProVu series of 1/8 DIN digital panel meters designed to accept strain gauge and load cell inputs, as well as mV signals up to 300 mV (unipolar) and ± 250 mV (bipolar), making it suitable for weight indication and force measurement applications. It has a maximum output current of 350 mA at 10 V, allowing it to support up to twelve 350 Ω load cells (with a minimum load resistance of 28 Ω), which is perfect for multipoint weight measurement setups.

The PD6100 features a dual-line display and robust dual-scale capability, enabling measurements to be shown in two different units simultaneously. For instance, you could display gallons (for volume) on the upper line and pounds (for weight) on the lower line. Alternatively, the lower line can simply show the units of measure.

This strain gauge meter also includes a 24 VDC power supply to power the sensors and can be outfitted with up to four internal relays and two 4-20 mA outputs for added functionality.




More details

PD6200 ProVu Analog Input Flow Rate/Totalizer

The PD6200 is part of the ProVu series of 1/8 DIN digital panel meters, designed to display flow rate and total from analog outputs (like 4-20 mA, 0-5 V, or 1-5 V) from flowmeters. It features a dual-line, 6-digit display, with optional Sunbright® sunlight-readable LEDs. Typically, the flow rate is shown on the top line and the cumulative total on the bottom line. It can display totals up to 9 digits, including grand totals. Like all ProVu meters, the PD6200 is UL / C-UL listed and CE marked, has a NEMA 4X front, and offers both AC and DC power options. It can be fitted with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications. The PD6200 also includes a 24 VDC power supply for the flowmeter and can be programmed via front panel buttons or the free MeterView® Pro software.

More details

PD6262 ProVu Dual Analog Input Flow Rate/Totalizer

The PD6262 is part of the ProVu series of 1/8 DIN digital panel meters, designed to display flow rate and total from two analog output flowmeters (such as 4-20 mA, 0-5 V, or 1-5 V). It features a dual-line, 6-digit display that can come with optional Sunbright® sunlight-readable LEDs. The display allows for simultaneous viewing of both flow rates, alternating between the two inputs to show their respective flow rates and totals, or displaying results from mathematical operations performed on these values.

Like all ProVu meters, the PD6262 is UL / C-UL listed and CE marked, has a NEMA 4X front, and offers both AC and DC power options. It can also be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications. The PD6262 includes a 24 VDC power supply to operate the flowmeter and can be programmed using the front panel buttons or the free MeterView® Pro software.

More details

PD6300 ProVu Pulse Input Flow Rate/Totalizer

The PD6300 is part of the ProVu series of 1/8 DIN digital panel meters, designed to display flow rate and total from pulse output flowmeters (such as NPN, PNP, TTL, switch contact, or sine wave). It features a dual-line, 6-digit display, with optional Sunbright® sunlight-readable LEDs. Typically, the upper line shows the flow rate, while the lower line displays the cumulative total. The meter includes a total overflow feature that can display totals and grand totals of up to 9 digits.

Like all ProVu meters, the PD6300 is UL / C-UL listed and CE marked, features a NEMA 4X front, and offers both AC and DC power options. It can be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications. Additionally, the PD6300 includes a 24 VDC power supply to operate the flowmeter and can be programmed using the front panel buttons or the free MeterView® Pro software.

More details

PD6363 ProVu Dual Pulse Input Flow Rate/Totalizer

The PD6363 is part of the ProVu series of 1/8 DIN digital panel meters designed to display flow rate and total from two pulse output flowmeters (NPN, PNP, TTL, switch contact, sine wave, etc.). It features a dual-line, 6-digit display that can be upgraded with optional Sunbright® sunlight-readable LEDs. The display can show both flow rates simultaneously, alternate between the two inputs to display both flow rates and totals, or present the results of mathematical functions applied to the flow rates and totals.

Like all ProVu meters, the PD6363 is UL/C-UL listed, CE marked, has a NEMA 4X front, and offers AC or DC power options. It can also be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications. Additionally, the PD6363 dual-input flow rate/totalizer includes a 24 VDC power supply to operate the flowmeter and can be programmed using the front panel pushbuttons or the free MeterView® Pro software.

More details

PD6000 ProVu Process Meter

The PD6000 is part of the ProVu series of 1/8 DIN digital panel meters and is designed to accept process signals, including current (4-20 mA) or voltage (0-5V, 1-5V, etc.). It features a dual-line, 6-digit display, which can be upgraded with optional Sunbright® sunlight-readable LEDs. Like all ProVu models, the PD6000 has UL/C-UL listing, CE marking, a durable NEMA 4X front, and offers both AC and DC power options.

It can be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications. Additionally, the PD6000 comes with a 24 VDC power supply to support the transmitter and can be programmed using the front panel buttons or the free MeterView® Pro software.




More details

PD6001 - ProVu Feet & Inches Level Meter

The PD6001 is part of the ProVu series of 1/8 DIN digital panel meters and is uniquely designed to display levels in feet and inches rather than the typical decimal format. It accepts process signals, including current (4-20 mA) or voltage (0-5V, 1-5V, etc.), and features a dual-line display where the upper line conveniently shows the measurement in feet and inches, including fractions in 8ths or 16ths. The lower line can be utilized to display a tag or provide the input in an alternative scale, such as volume in gallons or liters.

Like all ProVu models, the PD6001 comes with UL/C-UL listing, CE marking, a durable NEMA 4X front, and offers both AC and DC power options. It can support up to four internal relays, a 4-20 mA output, and Modbus® serial communications. The PD6001 also features a 24 VDC power supply for the transmitter and can be programmed using the front panel buttons or the free MeterView® Pro software.




More details

PD6400 ProVu True RMS High Voltage & Current Digital Panel Meter

The PD6400 is part of the ProVu series of 1/8 DIN digital panel meters, designed to simultaneously accept high voltage (0-300 VAC/VDC) and high current (0-5 AAC/ADC) inputs. It is perfect for measuring direct voltage and current, as well as the output from voltage shunts and current transformers. The meter features a dual-line, 6-digit display, which can be enhanced with optional Sunbright® sunlight-readable LEDs. Users can customize the display to show voltage on one line and current on the other, or to present the apparent power by multiplying the two inputs. Like all ProVu meters, the PD6400 AC/DC voltage and current meter is UL/C-UL listed, CE marked, has a NEMA 4X front, and offers AC or DC power options. It can also be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications.

More details
