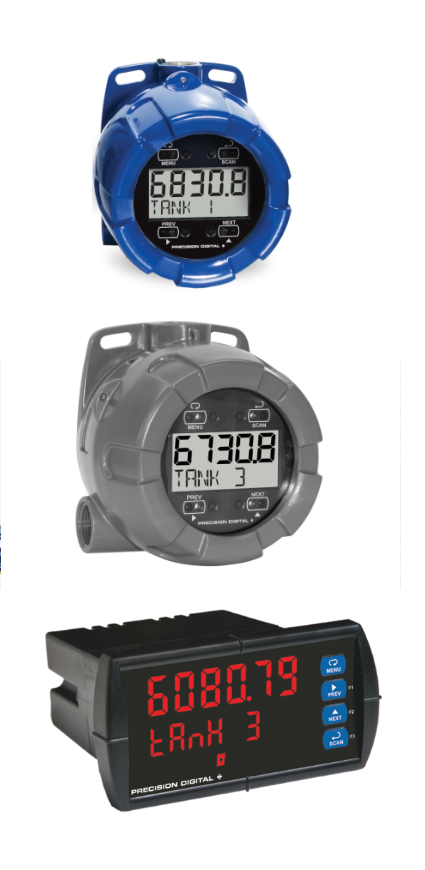

Provu Modbus Display Meter

Precision Digital manufactures a variety of Modbus RTU / ASCII & Ethernet TCP/IP displays and scanners that can operate in Client (Master), Server (Slave), Snooper (Packet Sniffer), and Spoofer mode. Offerings include the ConsoliDator+ which can display up to 199 Modbus inputs on 5.7” color display and panel, field-mount, and explosion-proof varieties that can accept up to 16 Modbus inputs. These products can be equipped with multiple relay and 4-20 mA outputs and some will even accept 4-20 mA and pulse inputs.

Featured Videoenlightened
Super Snooper Modbus Scanners from Precision Digital






PD6080 ProVu Decimal Display Modbus Scanner with Dual Analog Inputs

The ProVu PD6080 Super Snooper Modbus® scanner is a multifunctional display and controller that can monitor up to 16 Modbus process variables and accept two analog inputs. It can be configured as a Modbus RTU master, slave, or snooper, making it an excellent choice for Modbus multivariable transmitters or existing Modbus networks that require a user-friendly remote display.
In master mode, the PD6080 can read up to 16 Modbus registers from 16 devices and cycle through these process variables on a dual-line display, showing units and tags for each. In snooper mode, it can monitor any Modbus variable that a master is polling, allowing for easy integration into current Modbus setups.

Like all ProVu meters, the PD6080 is UL / C-UL listed and CE marked, features a NEMA 4X front for durability, and offers both AC and DC power options. It also includes powerful mathematical functions for the analog or Modbus inputs, such as addition, subtraction, averaging, and ratio calculations.




More details

PD6081 ProVu Feet & Inches Modbus Scanner with Dual Analog Inputs

The ProVu PD6081 Super Snooper feet & inches Modbus® scanner presents level data using a specialized feet & inches display rather than the standard decimal format. This makes it an excellent choice for Modbus level or multivariable transmitters, as it can scan up to 16 Modbus process variables.

Its distinctive upper LED display shows measurements up to 99 feet and 11 and 15/16 inches, while the 6-digit lower display can present units, tags, or other variables like volume, temperature, or density. The PD6081 also features dual analog inputs, allowing it to integrate traditional 4-20 mA or voltage inputs into the display.
It can be configured as a Modbus master, slave, or snooper, and like all ProVu meters, it carries UL / C-UL listing and CE marking, has a NEMA 4X front for durability, and offers both AC and DC power options. Additionally, it supports various mathematical functions for the analog or Modbus inputs, including addition, subtraction, averaging, and ratio calculations.




More details

PD6088 ProVu Decimal Display Modbus Scanner

The ProVu PD6088 Super Snooper Modbus® scanner is capable of displaying up to 16 Modbus process variables (PVs) via its RS-485 serial input. It can operate as a Modbus master, slave, or snooper.

In master mode, the PD6088 polls multiple Modbus devices to retrieve up to 16 PVs. When set as a slave, it allows a Modbus master to write up to 16 PVs for display on the scanner. In snooper mode, it can be placed anywhere on the Modbus network to display up to 16 PVs being polled without requiring any reconfiguration of other Modbus devices, making it simple to add local or remote displays to the network.

As with all ProVu meters, the PD6088 is UL / C-UL listed and CE marked, features a NEMA 4X front for durability, and is available with both AC and DC power options. It also supports various mathematical functions for the analog or Modbus inputs, including addition, subtraction, averaging, and ratio calculations.




More details

PD6089 ProVu Feet & Inches Modbus Scanner

The ProVu PD6089 Super Snooper feet & inches Modbus® scanner features a specialized display for showing level information in feet and inches, moving away from the typical decimal format. This makes it an excellent choice for Modbus level or multivariable transmitters, as it can scan up to 16 Modbus process variables.

The upper LED display uniquely indicates measurements of up to 99 feet and 11 and 15/16 inches, while the 6-digit lower display can show units, tags, or other variables such as volume, temperature, or density. The PD6089 is versatile, functioning as a Modbus master, slave, or snooper.

Like all ProVu meters, it comes with UL / C-UL listing and CE marking, features a durable NEMA 4X front, and offers both AC and DC power options. It also supports various mathematical functions for the analog or Modbus inputs, including addition, subtraction, averaging, and ratios.




More details
