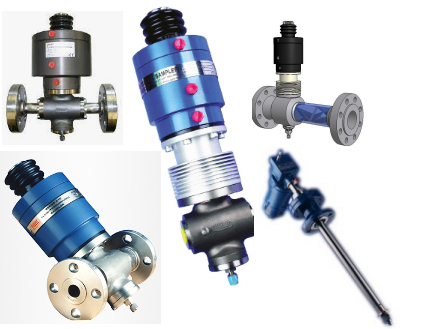

JISKOOT Liquid Cell Samplers

JISKOOT Liquid Cell Samplers consist of the following:
  • JISKOOT 210SD Severe Duty Cell Sampler
  • JISKOOT 210P & 210P-HP Pneumatic Hydrocarbon Cell Sampler
  • JISKOOT 210EH & 210EH-HP Hydraulic Hydrocarbon Cell Sampler
  • JISKOOT 210HT High Temperature Cell Sampler
  • JISKOOT 210 Hybrid Cell Sampler
  • JISKOOT 710EL-MC Cell Electrically Driven Flow-Through Sample Extractor
  • JISKOOT SCV Sampling Check Valve


JISKOOT 210SD Severe Duty Cell Sampler

The 210SD line of Severe Duty Liquid Cell Samplers represents a cutting-edge solution tailored for liquid sampling scenarios characterized by the presence of abrasive solids and sediments that pose challenges to conventional sampling technologies. These innovative samplers are equipped with specially chosen coatings and seals to withstand the abrasive nature of fluids, ensuring an extended lifespan compared to traditional sampling methods. Particularly well-suited for heavy oil applications where sediments are prevalent, the 210SD line showcases a perfect blend of durability and functionality, making it a reliable choice for demanding sampling environments. By leveraging these advanced liquid cell samplers, organizations can effectively address the complexities associated with abrasive solids and sediments, facilitating precise and reliable sampling processes in heavy oil applications and similar challenging scenarios.

INTRODUCING THE SERIES 210 STANDARD CELL SAMPLER

The Series 210 Standard cell sampler has been meticulously engineered to fit snugly between a duo of 1-inch ANSI Class 150, 300, or 600 raised-face flanges, ensuring seamless integration. This robust sampler boasts the ability to endure rigorous static pressure testing up to the full flange rating, providing peace of mind in performance reliability.

CUSTOMIZATION OPTIONS FOR OPTIMAL FUNCTIONALITY

For enhanced versatility in diverse settings, alternative flange sizes and finishes can be accommodated to cater to specific application requirements. This flexibility allows for tailored solutions that align perfectly with individual needs, promoting maximum efficiency and efficacy.

BEST PRACTICES FOR OPTIMAL SAMPLING RESULTS

To maintain optimal performance and accuracy, it is imperative that the outlet pipe connection maintains a horizontal or downward-facing orientation to prevent the occurrence of water traps. Furthermore, ensuring adequate mixing of flow through both the bypass loop and cell sampler is crucial to capture the properties of interest effectively.

CRITICAL CONSIDERATIONS FOR WATER CONTENT SAMPLING

When conducting sampling for water content analysis, it is highly recommended to maintain a minimum flow velocity within the cell sampler, surpassing 3.5 m/s (equivalent to 6 m3/h) plus an additional 1 meter upstream. This approach guarantees precise and reliable measurements, enhancing the overall quality of the sampling process.




More details

JISKOOT 210P & 210P-HP Pneumatic Hydrocarbon Cell Sampler

The low maintenance, pneumatically actuated sampler is tailored for handling liquid hydrocarbons with viscosities up to 8000cSt. It seamlessly integrates with ANSI 150-1500 pressure ratings. Known as the 210P model, this sampler is specifically engineered to thrive in challenging environments characterized by heavy crude oil. Its capability to conduct sampling at a remarkable rate of up to 120 grabs per minute positions it as an optimal choice for scenarios necessitating swift sampling, especially in situations with line-fill between the custody transfer point and sampler.

The 210 HP air-actuated cell sampler caters to high-pressure applications, adhering to ANSI Class 900 standards. It is also a suitable option for environments with low air pressure conditions that are below 5 Bar(g).

The Series 210 Standard cell sampler is meticulously engineered to be securely bolted as a wafer between a set of 1-inch ANSI Class 150, 300, or 600 raised-face flanges, ensuring robust connection and stability. It boasts the capability to endure static pressure testing up to the full flange rating, proving its reliability and resilience in various operational conditions. For enhanced versatility, alternative flange sizes and finishes can be accommodated to cater to specific application requirements.

To eliminate the risk of water traps, it is imperative that the axis of the outlet pipe connection is either positioned horizontally or directed downward. This preventive measure serves to maintain a seamless flow and prevent any undesirable trapping of water within the sampler system. Additionally, it is crucial that the flow passing through both the bypass loop and the cell sampler undergoes adequate mixing to ensure the properties of interest are effectively captured and analyzed. The proper mixing of flow within these components is essential for accurate and reliable sampling results.

Where sampling for water content, it is recommended that a minimum flow velocity within the cell sampler plus 1 m upstream exceeds 3.5 m/s (6 m3/h). A sampler solenoid valve MUST suit the specific application. The valve requires connection to suitable supplies via glands and cables appropriate to the area classification

Within the 210SD line, Sever Duty Liquid Cell Samplers are ingeniously crafted to accommodate liquid sampling scenarios involving fluids enriched with abrasive solids and sediments that pose a threat to the longevity of conventional sampling techniques. Equipped with meticulously chosen coatings and seals, these samplers excel in heavy oil environments where sediments typically congregate, showcasing optimal performance and durability.




More details

JISKOOT 210EH & 210EH-HP Hydraulic Hydrocarbon Cell Sampler

210EH is a hydraulically actuated sampler designed for liquid hydrocarbons with viscosities up to 8000cSt.

It's ability to function in installations without plant air, which makes it quite versatile. Additionally, the option to have a self-contained "power-pack" is convenient, and its availability in ANSI 150-1500 pressure ratings makes it suitable for various industrial settings. The fact that it's designed for arduous, heavy crude oil environments suggests its robustness and reliability.


More details

JISKOOT 210HT High Temperature Cell Sample

210HT Liquid Cell Sampler is designed to handle high temperature liquid sampling applications where the process fluid temperatures normally run above 100°C (212°F), such as those found in Steam Assisted Gravity Drain (SAGD) processes or directly from high temperature industrial processes. This specialized sampler seems well-suited to meet the demands of challenging high temperature sampling requirements.

210 HT. Air-actuated cell sampler for use in high and low temperature environments.




More details

JISKOOT 210 Hybrid Cell Sampler

210 Hybrid Cell Samplers are specifically designed for liquid sampling applications where the sampler needs to be mounted between flanges in line sizes ranging from 2 inches to 6 inches.
Additionally, an optional integrated static mixer can be added if additional line mixing is necessary, ensuring homogeneity of the process fluid at the sampling point.



More details

JISKOOT 710EL-MC Cell Electrically Driven Flow-Through Sample Extractor

The 710EL-MC Cell is a low-pressure flow-through sample extraction device that is suitable for use as part of an externally pumped bypass or a small diameter pipeline. This device is powered by an integrated motor, making it ideal for use as part of a fast-loop sampling system or a fiscal quality loop in situations where an air supply is unavailable.



More details

JISKOOT SCV Sampling Check Valve

The JISKOOT SCV Sampling Check Valve is tailored for use with JISKOOT sampling and blending products, specifically engineered to excel in demanding liquid sampling applications. It ensures peak performance in challenging conditions, including conventional crude oils, refined products, and sediment-laden heavy oils, where traditional sampling check valves may fall short.

JISKOOT SCV Sampling Check Valve

More details
