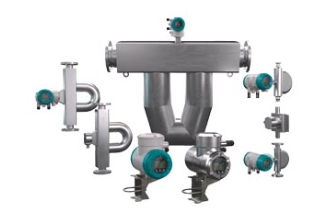

The SITRANS FCS100 sensor is a precise Coriolis flow sensor specifically engineered for low flow applications. Notably, it's possibly the most compact dual curve Coriolis flow sensor available, offered in nominal sizes DN 1 to DN 8. It provides a range of process connection options and allows for installation in confined spaces without inlet and outlet restrictions. These sensors are well-suited for pilot plants, R&D labs, and high-value fluid additives. They can be paired with a remote transmitter via a connecting cable, enabling installation of the sensor and transmitter in separate locations.

The SITRANS FCS500 sensor is a versatile Coriolis flow sensor tailored for both routine and hygienic applications. It features dual curved AISI 316L stainless steel tubes, with a polished option, and is available in nominal sizes DN 10 to DN 80. It offers various process connection options, including flange, thread, or a range of hygienic fittings. Moreover, this sensor holds hygienic approvals for the food, beverage, and pharmaceutical sectors, delivering a flexible solution with excellent turndown and low pressure loss. It can also be paired with compact or remote transmitters for enhanced flexibility.

SITRANS FCS600 sensor is quite versatile and resilient, designed to handle extreme conditions and corrosive fluids. Its features, such as the dual curved tubes, wide temperature range, and various process connection options, make it suitable for a range of applications. The ability to combine it with compact or remote transmitters adds to its flexibility.

The SITRANS FCS700 sensor appears to be well-suited for large pipes and high flow applications, boasting features such as dual curved tubes for optimal decoupling, energy-efficient design, and high-power tube driver for reliable measurements in high damping scenarios. Its compatibility with compact or remote transmitters adds to its adaptability. It seems like a robust solution for demanding flow measurement needs.

The FCT020 transmitter seems to be a versatile solution for general-purpose applications, offering precise measurements of various parameters. Its compatibility with all SITRANS FC sensors and the flexibility in selecting spare transmitters using the ordering code without a sensor provides ease in replacing or adding transmitters as required. This adaptability could be beneficial for various operational needs.

FCT040 is an advanced transmitter that provides a broader range of application solutions along with enhanced performance. Users have the flexibility to select additional measurements and functions at the time of ordering, including concentration (fraction), viscosity, batch control, and heat calculation. Like the FCT020, the FCT040 transmitter is available in both compact and remote designs and is compatible with all SITRANS FC sensors. When selecting spare transmitters, the process involves using the SITRANS FC ordering code without selecting a sensor, allowing for convenient replacement or addition of transmitters.

The SITRANS FC100 series, which includes the FC120 and FC140, seems tailored for precision in low-flow applications, offering compact dual curved alloy 22 measuring tubes, various process connection options, and a wide range of nominal flow rates. The capability to combine the FCS100 sensor with a remote transmitter in different locations through a connecting cable adds to its installation flexibility. This series appears to be well-equipped for demanding low-flow measurement needs.

The SITRANS FC600 series, featuring the FC620 and FC640, is specifically designed for extreme conditions, emphasizing ruggedness and top-notch performance in demanding operating environments. With the ability to withstand high temperatures up to 350°C, high pressures up to 700 bar (10,153 psi) (gauge), and corrosive fluids, these systems are built to handle tough challenges. Their dual curved measuring tubes with optimal decoupling from external stresses and vibrations, along with wetted parts made of stainless steel 316L or alloy 22, make them well-suited for long-term durability. The option for combining FCS600 sensors with compact or remote transmitters and the advanced diagnostic functionality further enhance their adaptability and reliability. It's worth noting that FC600 sizes DN 2 and DN 4 are exclusively available with a standard neck and remote transmitter.

The SITRANS FC500 series, consisting of the FC520 and FC540, seems to be a robust solution for universal Coriolis multi-parameter flow measurement, catering to routine and hygienic applications. With features like dual curved AISI 316L stainless steel measuring tubes, a wide range of nominal flow rates, and the ability to combine FCS500 sensors with compact or remote transmitters, these systems offer versatility and meet hygienic specifications for various industries such as food and beverage, biotechnology, and pharmaceuticals. This adaptability and compliance make them suitable for a range of demanding applications.

The SITRANS FC700 series, featuring the FC720 and FC740, is designed as large-scale Coriolis multi-parameter flowmeters, tailored for use in large pipes and high-flow applications. With dual curved AISI 316L stainless steel or alloy 22 measuring tubes, process connections via flanges, and nominal flow rates ranging from 250,000 kg/h to 900,000 kg/h, these systems are engineered to meet the demands of high-capacity processes. The option to combine FCS700 sensors with compact or remote transmitters provides versatility, superior turndown, and minimal pressure loss, ensuring durability and high performance in large-scale operations.
