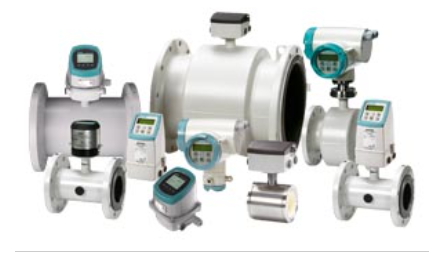

• The main applications of the SITRANS FM electromagnetic flow sensors can be found in the following fields:
• Process industry
• Chemical industry
• Steel industry
• Mining
• Utility
• Power generation and distribution
• Oil and gas/HPI
• Water and waste water

• Wide range of sizes: DN 15 to DN 2000 (½" to 78")
• The flexible design is for all applications not covered by the standard industry-specific sensors: MAG 1100, MAG 1100 F, MAG 3100 P and MAG 5100 W
• Wide pressure range: PN 6 to PN 100
• ANSI Class 150/300, AS 2129, AS 4087, JIS K10 and K20. On request up to 690 bar (10 000 psi)
• Wide range of electrode and liner material to fit even the most extreme process media
• Fully welded construction provides a ruggedness that suits the toughest applications and environments.
• Easy commissioning, the SENSORPROM unit automatically updates settings.
• Designed to allow patented SITRANS FM in-situ verification using the SENSORPROM fingerprints.

• Water abstraction
• Water treatment
• Water distribution network (leak detection management)
• Custody transfer water meters
• Irrigation
• Waste water treatment
• Filtration plant (e.g. reverse osmosis and ultra-filtration)
• Industrial water applications

• DN 15 to DN 2000 (½" to 80")
• Stock program of MAG 5100 W secures short delivery time
• Connection flanges EN 1092-1 (DIN 2501), ANSI, AWWA, AS and JIS
• NBR Hard Rubber and Ebonite Hard Rubber liner for all water applications
• EPDM liner with drinking water approvals
• Hastelloy integrated grounding and measuring electrodes
• Increased low flow accuracy for water leak detection, due to coned liner design
• Drinking water approvals
• Suitable for direct burial and constant flooding
• Custody transfer approvals for cold water and energy metering (MI-001, KIWA, NMI M10, PTB K7.2)
• Built-in length according to ISO 20456; the standard includes sizes up to DN 400
• Easy commissioning, SENSORPROM unit automatically uploads calibration values and settings
• Designed to allow patented in-situ verification using SENSORPROM fingerprint
• Qualified for operation in non-optimal installation conditions with no straight inlet and outlet run of piping (0 × DN)
• Conform to ISO 4064 and EN 14154 for mechanical flowmeters
• FM Fire Service Meter (Class Number 1044) for automatic fire protection systems
• Meets EEC directives: PED 2014/68/EU pressure directive for EN 1092-1 flanges
• Simple onsite or factory upgrade to IP68/NEMA 6P of a standard sensor
• Type approval of marine equipment (DNV)

• Food industry
• Beverage industry
• Pharmaceutical industry

• Unique mechanical design with a wide range of customer specified sanitary connection
• Compact or remote mounting possible easy “plug & play” field changeable
• Simple on-site upgrade to IP68/NEMA 6P terminal box
• ATEX 2G D version for hazardous areas (ceramic liner)

• Flexible and unique process connections
• Standard liner options that fully cover the food and beverage applications
• Short delivery time on standard process connections
• IP67/NEMA 4x rating that is upgradable to IP68/NEMA 6P
• Sanitary design for CIP/SIP cleaning

• Process industry
• Chemical industry
• Pharmaceutical industry
• Water treatment like e.g. chemical dosing

Design

• Compact or remote mounting possible
• Easy “plug & play” field changeability of transmitter
• Simple on-site upgrade to IP68/NEMA 6P terminal box
• ATEX 2G D version
• FM Class I Div 2

• Compact wafer design meets EN 1092, DIN and ANSI flange standards
• Versatile - Highly resistant lining and electrode materials for use with the most extreme process media
• High temperature version available up to 390 °F
• SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 /3100/1100):
  • Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
  • Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
  • "Hot swapable" - exchangeable during operation
  • Mounting flexibility - compact or separate installation possible
  • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
  • Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field

• Chemical industry
• Process industry
• Pulp and paper
• Industrial waste water

• Compact or remote mounting possible
• Easy “plug & play“ field changeability of transmitter
• High temperature sensor for applications with temperatures up to 150 °C (302 °F)
• Meets EEC directives: PED, 2014/68/EU pressure directive for EN 1092-1 flanges
• Build-in length according to ISO 20456
• Onsite or factory upgrade to IP68/NEMA 6P of a standard sensor.

• DN 15 to DN 300 (½" to 12")
• Included in Quick Ship Program (delivery time see PIA LCP)
• Most used flowmeter in the chemical and process industries with PTFE/PFA liner and Hastelloy electrodes
• Excellent chemical resistance
• Full scope of global approvals for hazardous areas:
  • ATEX, FM, CSA, IEcEx
  • 24 V and 115/230 V Ex compact and remote
  • intrinsically safe ia analog output
• Comprehensive self-diagnostic for error indication and error logging
• Fully welded construction provides a ruggedness that suits the toughest applications and environments.
• Easy commissioning, the SENSORPROM unit automatically updates settings.
• Conforming to NAMUR recommendations NE 21, NE 32, NE 43, NE 53 and NE 70

• Water and waste water
• Chemical and pharmaceutical industries
• Food and beverage industries
• Power generation and utility

• 19" rack systems
• Front panel mounting IP65/NEMA 2
• Panel mounting IP20/NEMA 1
• Wall mounting IP66/NEMA 4X

• Transmitters mounted in safe area for Ex ATEX approved flow sensors (incl. barriers)
• Transmitters with electrode cleaning unit on request

• Superior signal resolution for optimum turn down ratio
• Digital signal processing with many possibilities
• Automatic reading of SENSORPROM data for easy commissioning
• User configurable operation menu with password protection
• 3 lines, 20 characters display in 11 languages
• Flow rate in various units
• Totalizer for forward, reverse and net flow as well as additional information available
• Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status, flow direction, limits)
• Comprehensive self-diagnostic for error indication and error logging (see SITRANS F M diagnostics)
• Batch control (MAG 6000 only)
• Custody transfer approval: MI-001 for cold water, PTB K 7.2 and OE12/C 040 for chilled water
• MAG 6000 with add-on bus modules for HART, FOUNDATION Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA and DP

• The following functions are available:
• Flow rate
• 2 measuring ranges
• 2 totalizers
• Low flow cut-off
• Flow direction
• Error system
• Operating time
• Uni-/bidirectional flow
• Limit switches and pulse output
• Batch control

• Keypad and display unit
• HART communicator
• PC/laptop and SIMATIC PDM software via HART communication
• PC/laptop and SIMATIC PDM software using PROFIBUS or Modbus communication

• Full range of Ex-rated flowmeters with intrinsically safe rated input and outputs
• For compact or remote installation
• HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA and DP, Modbus RTU/RS 485 add-on communication modules available
• Superior signal resolution for optimum turn down ratio
• Digital signal processing with many possibilities
• Automatic reading of SENSORPROM data for easy commissioning
• User configurable operation menu with password protection
  • 3 lines, 20 characters display in 11 languages
  • Flow rate in various units
  • Totalizer for forward, reverse and net flow as well as much more information available
• Multiple functional outputs for process control, minimum configuration with analogue, pulse/frequency and relay output (status, flow direction, limits)
• Comprehensive self-diagnostic for error indication and error logging
• Batch control
• Conforming to NAMUR recommendations NE 21, NE 32, NE 43, NE 53 and NE 70
• Self verification

• In-situ check of performance without interrupting the flowmeter installation
• Fully automated – no manual set up or data input – with predefined factory accept levels
• No expensive removal or installation costs
• Full verification report to confirm meter performance according to quality standard ISO 9001 and management standard ISO 14001

• Zero Up and Zero Down installation capabilities
• NBR rubber liner for all water and wastewater applications
• EPDM liner specifically for drinking water applications requiring special approvals
• Soft elastomer facing provides high abrasion resistance
• Increased low flow accuracy for water leak detection
• Rugged construction with no moving parts for maintenance-free operation over many years
• Simple on-site upgrade to IP68 of a standard sensor allowing underground installation, permanent immersion or underwater installation
• Integrated grounding electrodes – no grounding rings required for many applications
• Short delivery time
• Built-in length according to ISO 20456 (up to DN 400 mm)
• SENSORPROM™ Technology provides an automatic upload of start-up settings and calibration data for easy commissioning
• Designed to allow in-situ verification for easy performance check
• In conformity with ISO 4064, OIML R49 and EN 14154

• Backwards compatible with older (up to 15 years) flow meter sensors (MAG 5100W)
• Fast start-up without zero-point adjustments
• Variety of functions for comprehensive device check, self-diagnosis, and onboard verification
• Verificator compatible - Independently verifies performance of sensor, transmitter, and installation (including cable) without process interruption
• Easy to use HMI display with local four-button programming, menu-driven parameters, and Wizard support for key applications
• Multi-functional outputs for process control, minimum configuration with analog, digital (pulse, frequency, status), and relay output
• SD memory card for data logging, configuration backup, and firmware update
• Seamless field device integration in host systems

• Pulp and Paper industry
• Mining industry

• High concentrated paper stock > 3 %
• Heavy mining slurries up to 70 % solid concentration
• Mining slurries with magnetic particles
• Low conductive medias ≥1 μS/cm

• Available for remote mounting
• PROFIBUS PA (profile 2.0) / HART communication
• Analog output and digital outputs for pulses, device status, limits, flow direction, frequency output

• Wide range of sizes DN 15 to DN 1000 (½" to 40")
• Broad range of liner and electrode materials for extreme process medias
• Fully welded construction provides a ruggedness that suits the toughest applications and environments.
• Automatic reading of SmartPLUG for easy commissioning
• Simple menu operation with two-line display
• Comprehensive self-diagnostic with self-monitoring and internal simulation
