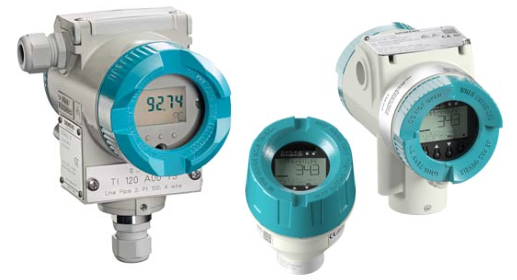

SIEMENS SITRANS Temperture Transmitters (Field Mounting)

SITRANS TF is available in your choice of a rugged die-cast aluminum or durable stainless-steel housing. It measures signals from resistance thermometers, resistance-type sensors, thermocouples and voltage sensors, and converts the signal into direct current signal or bus signal (Profibus PA or Foundation Fieldbus) in accordance with the sensor characteristics.

The SITRANS TF280 is a field temperature transmitter that transmits the process value per Wireless HART communication.

The field transmitter for rugged industrial environments.

Because of its IP67 protection, SITRANS TF is used in environments too tough for other transmitters.

It measures signals from resistance thermometers, resistance-type sensors, thermocouples and voltage sensors, and converts the signal into direct current signal (HART) or bus signal (Profibus PA, Foundation Fieldbus or Wireless HART) in accordance with the sensor characteristics

SIEMENS SITRANS TF HEAVY DUTY Temperature transmitter

SIEMENS SITRANS TF320/TF420 TEMPERATURE TRANSMITTER

SIEMENS SITRANS TF HEAVY DUTY Temperature transmitter

The SITRANS TF is a highly robust transmitter designed to handle challenging environments, boasting an IP67 rating. Constructed from durable die-cast aluminum or long-lasting stainless steel, it excels at transforming resistance thermometers, thermocouples, Ohm and mV signals into a load-independent DC current or a digital signal according to Fieldbus standards like Profibus PA or Foundation Fieldbus. The remote-mounted sensor prevents overheating at high temperatures and eliminates vibrations and oscillations associated with long neck tubes and protective pipes. This flexibility allows for easy access and display of measured values on the programmable digital display. Additionally, the SITRANS TF can be used without a transmitter as a versatile field display unit for all 4 to 20 mA signals. Models are available in intrinsically safe or explosion-proof versions, catering to various application requirements

Catalog Sheet SITRANS TF

Compact User Manual SITRANS TH/TR/TF

SITRANS TF with and without HART

SITRANS TF with PROFIBUS PA and FOUNDATION Fieldbus Communication

Functional safety for SITRANS TF

Temperature Measurement Brochures

Process Instrumentation Brochures

SITRANS TF is an IP67 field transmitter for heavy industrial use. It transforms resistance thermometers, thermocouples, Ohm and mV signals into a load independent DC current corresponding to sensor characteristic or a digital signal according Fieldbus standard Profibus PA or Foundation Fieldbus.

Application

SITRANS TF can be used everywhere where temperatures need to be measured under particularly adverse conditions, or where a convenient local display is ideal. Which is why users from all industries have opted for this field device. The rugged enclosure protects the electronics. The stainless steel model is almost completely resistant to sea water and other aggressive substances. The inner workings offer high measuring accuracy, universal input and a wide range of diagnostic options.

Benefits

Universal use
- as transmitter for resistance thermometer, thermocouple element, Ω or mV signal
- as field indicator for any 4 to 20 mA signals
Local sensing of measured values over digital display
Rugged two-chamber enclosure in die-cast aluminum or stainless steel
IP66/67/68 degree of protection
Test terminals for direct read-out of the output signal without breaking the current loop
Can be mounted elsewhere if the measuring point
- is difficult to access
- has high temperatures
- experiences vibrations due to the process cell
- is to avoid long neck pipes and thermowells
Can be mounted directly on American-design sensors
Wide range of approvals for use in potentially explosive atmospheres. Types of protection "Intrinsically safe, non-sparking and flameproof", for Europe and the USA.
SIL2 (with order note C20), SIL2/3 (with C23)

More details

SIEMENS SITRANS TF320/TF420 TEMPERATURE TRANSMITTER

SITRANS TF320 and TF420 are both 2-wire temperature transmitters designed to accommodate various temperature sensors. The TF320 is available in dual chamber and single chamber enclosures, offering universal input compatibility and configurable options via PC, HART 7, or optional local operation. On the other hand, the TF420, also available in dual chamber and single chamber enclosures, includes a HART communication interface and the ability to connect two independent input circuits for redundant operation, along with input drift detection and similar configuration options. These features provide flexibility and redundancy for meeting specific application requirements.

Catalog Sheet SITRANS TF320 / 420

Compact Operating Instructions TF320/TF420

SITRANS TF320/TF420 with 4 to 20 mA/HART

SITRANS TF320/TF420 with HART - Functional Safety Manual

Temperature Measurement Brochures

Process Instrumentation Brochures

Application

SITRANS TF320 can be used everywhere where temperatures need to be measured under particularly adverse conditions and where a user-friendly local display is ideal. Which is why users from all industries have opted for this field device. The rugged enclosure protects the electronics. The stainless steel model is almost completely resistant to sea water and other aggressive substances. The inner workings offer high measuring accuracy, universal input and a wide range of diagnostic options.

SITRANS TF420 with its two sensor inputs can be used everywhere where temperatures need to be measured without interruption under particularly adverse conditions and where a convenient local display is ideal. Which is why users from all industries have opted for this field device. The rugged enclosure protects the electronics. The stainless steel model is almost completely resistant to sea water and other aggressive substances. The inner workings offer high measuring accuracy, universal input and a wide range of diagnostic options.

Detail

Input	Resistance thermometers, thermocouples, resistors, potentiometers, DC voltage sources
Display with push buttons	Rotatable in 90° steps
Output	4…20mA (SITRANS TF320), HART 7 (SITRANS TF320/420)
Material	Aluminum
Material	Stainless steel CF3M/1.4409 similar to 316L (dual chamber enclosure)

Benefits

Universally applicable as a temperature transmitter with galvanic isolation for:
- Resistance thermometer (2-wire, 3-wire, 4-wire connection)
- Thermocouples
- Linear resistances, potentiometer and DC voltage sources
Local operation of the temperature transmitter via display (single chamber enclosure) or control keys accessible from outside (dual chamber enclosure)
Rugged single or dual chamber enclosure made of die-cast aluminum or stainless steel 316/316L
Electronic compartment isolated (watertight) from terminal compartment in dual chamber enclosure
Degree of protection IP66/68 (1.5 m/2 h)
Electromagnetic compatibility according to EN 61326 and NE21
Test terminals for direct read-out of the output signal without breaking the current loop
Remote installation option:
- Measuring point is difficult to access
- Measuring point is subjected to high temperatures
- Measuring point is subjected to vibration through plant
- Long neck pipes and thermowells must be avoided
Temperature transmitters of the "intrinsically safe protection type, increased safety for zone 2, flameproof and dust-protected" type of protection can be installed in hazardous areas. The transmitter meets the requirements of the EU Directive 2014/34/EU (ATEX), the FM and CSA regulations as well as other national approvals, e.g. EACEx, NEPSI, KCs, Inmetro.
SIL2/3 (with order note C20) according to IEC 61508 and Electrical Equipment For Furnaces And Ancillary Equipment (EN 50156-2)
