Ultrasonic Level Transmitter

Operating Instructions SITRANS Probe LU240 with mA/HART

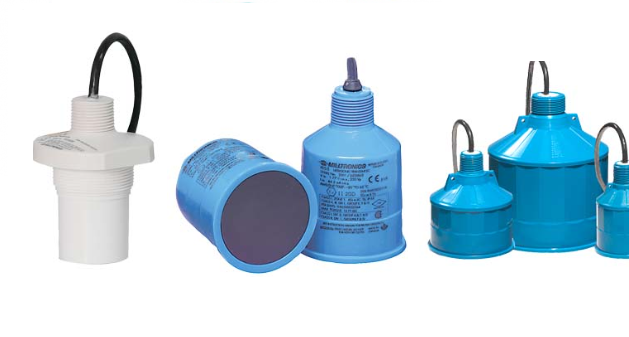

The XRS-5 is non-contacting with a measuring range from 0.3 to 8 m (1 to 26 ft). Advanced echo processing ensures reliable data even in conditions with obstructions, turbulence, and foam.

The hermetically sealed CSM rubber face and the PVDF copolymer enclosure are designed for maximum resistance to methane, salt water, caustics, and harsh chemicals common to wastewater installations. With an IP68 degree of protection, this rugged sensor is fully submersible in the event of flood conditions. Use a submergence shield if full submergence is possible in the application. A submergence shield will maintain a high level reading output during submerged conditions.

The low-cost XRS-5 transducer is compatible with a full range of Siemens controllers, from a basic system for high/low alarm or simple pump control, up to advanced control systems with communications, telemetry and SCADA integration capabilities.

Key Applications: wet wells, flumes, weirs, filter beds

Range	0.3 to 8 m (1 to 26 ft)
Maximum Temperature	65 °C (149 °F)
Frequency	44 kHz

Benefits

Narrow beam angle of only 10°
Chemically resistant PVDF copolymer enclosure and CSM rubber face
Measuring range: 8 m (26 ft) for measurement of liquids and slurries
Fully submersible: IP68 degree of protection
Easy installation with 1" NPT or R 1" BSPT connection

More details

SIEMENS SITRANS Probe LU240 Ultrasonic Level Transmitter

The SITRANS Probe LU240 ultrasonic level transmitter is an excellent choice for conducting level, volume, and volume flow measurements. Its versatility extends to working with liquids, slurries, and bulk materials, covering distances of up to 12 meters (40 feet). This makes it suitable for a wide range of industrial and process applications.

Catalog Sheet SITRANS Probe LU240

Equipment Manual SITRANS Probe LU240 - HART Field Device Specification

Application

SITRANS Probe LU240 is ideal for level monitoring in the water and wastewater industry, chemical storage vessels, and small bulk hoppers.

The range of SITRANS Probe LU240 is 3, 6, or 12 m (10, 20, or 40 ft). Probe LU240 provides unmatched reliability, using Process Intelligence, Auto False Echo Suppression for fixed obstruction avoidance, and accuracy of 0.15 % of range or 6 mm (0.25 inch) (on 6 m and 12 m models only).

SITRANS Probe LU240 offers HART communication on certain models and mA output on all models.

SITRANS mobile IQ is a Bluetooth app that provides an intuitive interface to quickly configure, set up, and monitor SITRANS Probe LU240 series (available for Android, Apple, and Windows devices). For more information: http://www.siemens.com/mobileIQ.

The transducer on the Probe LU240 is available as ETFE or PVDF to suit the chemical conditions of your application. As well, for applications with varying material and process temperatures, Probe LU240 incorporates an internal temperature sensor to compensate for temperature changes.

Key Applications: chemical storage vessels, filter beds, liquid storage vessels

Benefits

Continuous level measurement up to 12 m (40 ft) range
Easy installation and simple startup
Programming using 4-button HMI or SIMATIC PDM
Communication using HART
ETFE or PVDF transducers for chemical compatibility
Process Intelligence signal processing
IQ Guard for health monitoring, NE107 diagnostics and quality verification report
Auto False Echo Suppression for fixed obstruction avoidance
Low power and current startup
Optional Bluetooth configuration and monitoring via SITRANS mobile IQ

More details

SIEMENS EchoMax XPS ULTRASONIC LEVEL TRANSDUCER

The Echomax XPS transducers utilize ultrasonic technology to accurately measure levels in a diverse array of liquids and solids. Notably, these transducers can be fully immersed, exhibit resistance to steam and corrosive chemicals, and offer the advantage of being installable without requiring flanges. These capabilities make them a reliable and adaptable choice for various industrial and process applications.

Catalog Sheet Echomax XPS

Catalog Sheet EchoMax XPS and XCT

Operating Instructions XPS-10/15F Series Transducers

More details

SIEMENS ST-H ULTRASONIC LEVEL TRANSDUCER

The ST-H transducers leverage ultrasonic technology to measure levels in chemical storage and liquid tanks. Their narrow design enables mounting on a 2" (50.8 mm) standpipe, providing complete protection from the process when installed correctly. This feature makes them suitable for use in harsh and corrosive environments, ensuring reliable performance in challenging conditions.

Catalog Sheet ST-H Transducer

Operating Instructions ST-H Transducer
