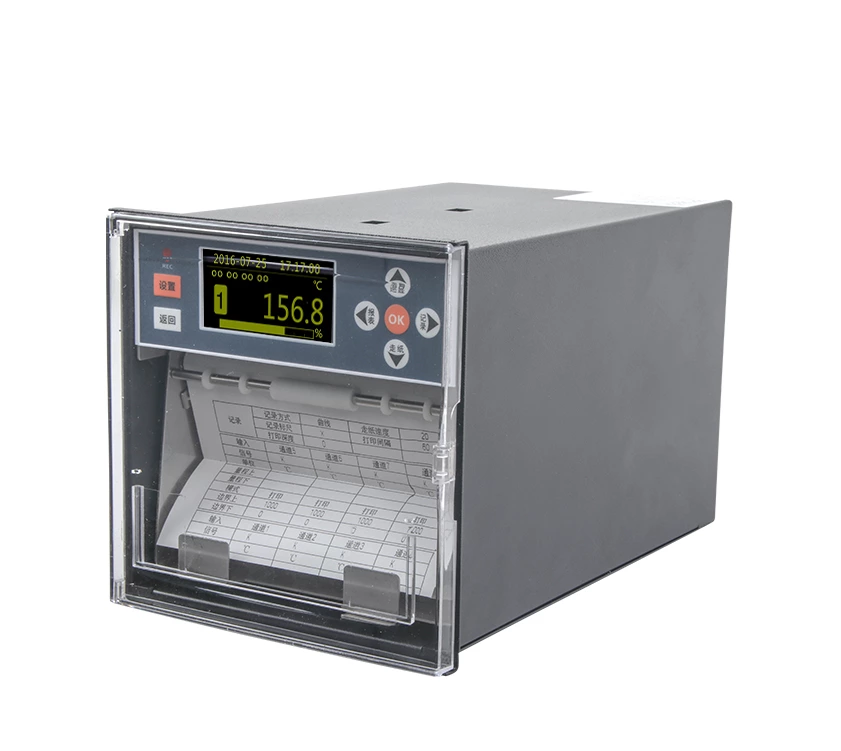

The SUP-R1200 is a microprocessor-controlled chart recorder that combines signal processing, display, printing, and alarm functions in one compact unit. It features a high-definition LCD screen and a vibration-resistant thermal printer that records data continuously without the need for ink or pens. Supporting up to 8 universal input channels, it accepts signals from voltage, current, thermocouples, and RTDs. Its robust design and flexible configuration make it ideal for industrial applications requiring accurate and uninterrupted data recording.

• Tank Level and Flow Monitoring
• Temperature and Pressure Recording
• Chemical and Petrochemical Processing
• Water and Wastewater Treatment
• Food and Beverage Production
• Pharmaceutical Manufacturing
• Power and Energy Monitoring

• Display LCD screen
• Input Channels Up to 8 universal inputs
• Input Types Voltage (0–5V, 1–5V), Current (0–10mA, 4–20mA), Thermocouples (B, E, K, S, T), RTDs (Pt100, Cu50, Cu100)
• Output Up to 2 current outputs (4–20mA), 8 relay alarms
• Chart Speed 10–2000 mm/h
• Sampling Period 600 ms
• Communication RS232/RS485 (customizable)
• Power Supply 100–240VAC, 24VDC
• Precision ±0.2% FS
• Dimensions 144 × 144 × 233 mm
• Panel Cutout 138 × 138 mm

• Universal Input Support: Handles voltage, current, thermocouple, and RTD signals.
• High Precision: ±0.2% FS accuracy ensures reliable data capture.
• Thermal Printing: Ink-free, vibration-resistant printer with 832 thermal points.
• Flexible Chart Speed: Adjustable from 10 to 2000 mm/h.
• Compact Design: DIN panel mountable with a short mounting depth.
• Real-Time Clock: Maintains accurate timing even during power loss.
• Alarm Outputs: Up to 8 relay alarms for real-time process alerts.
